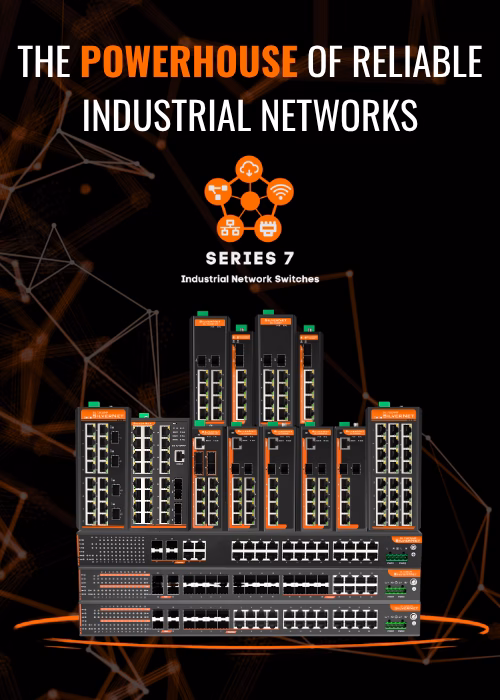

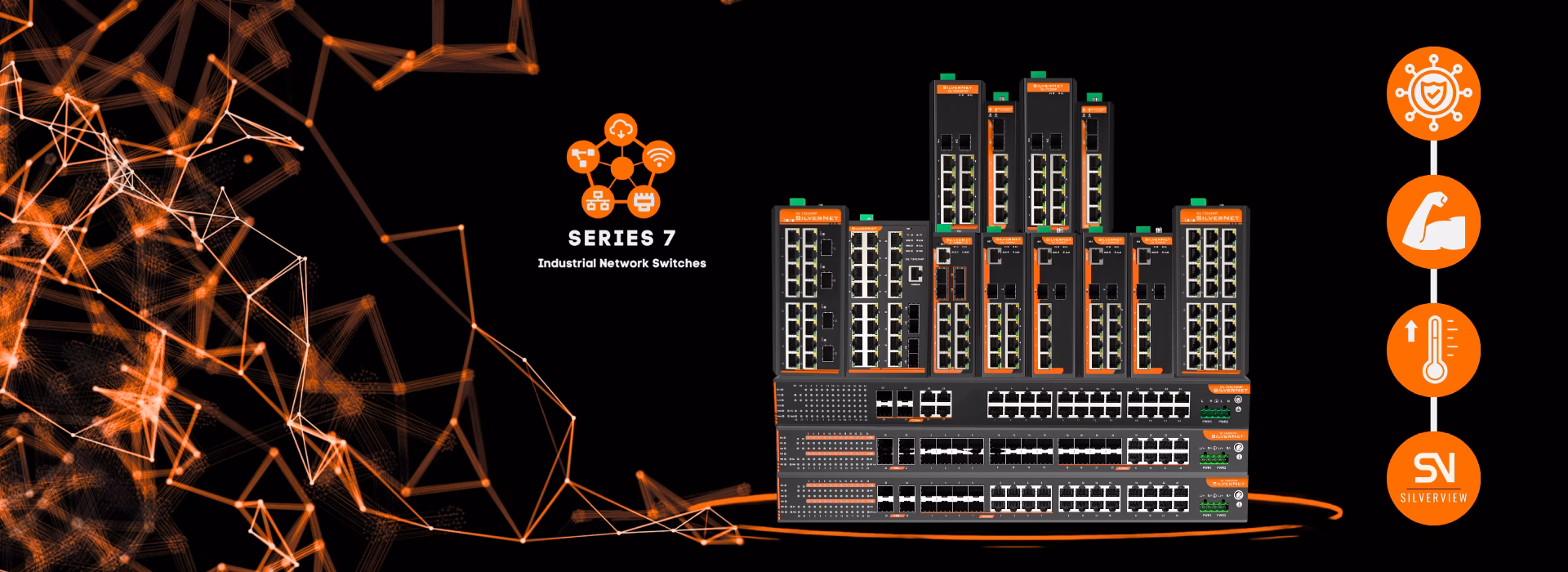

Unrivalled Performance and Reliability for Demanding Networks | The Powerhouse of Reliable Industrial Networks

SilverNet Series 7 Industrial Network Switches offer unrivalled performance and reliability. Made up of flexible and powerful options including Managed or Unmanaged, BT, 10G, and high-density Rack-mount Switches the Series 7 Industrial Switches range provides extensive variety to help you find the ideal network switch for CCTV, access control, or any mission-critical network that requires absolute dependability.

Designed specifically to meet the demanding requirements of harsh industrial environments, SilverNet Series 7 industrial network switches deliver robust connectivity wherever you need it.

• Scalable Port Options: Ranging from compact 4-port PoE+ switches up to high-density 28-port rack-mountable switches.
• Wide Temperature Resilience: Operating temperatures from -40°C to +75°C for unconditioned outdoor cabinets, server rooms, and extreme industrial environments.
• Flexible Form Factors: Rugged desktop, wall-mounted, DIN rail, or rack-mounted options to suit your requirements.
• Variable Input Voltages: Fully managed options featuring 9VDC to 56VDC input with full PoE+ delivery, alongside high-power AC/DC rack-mount power options.

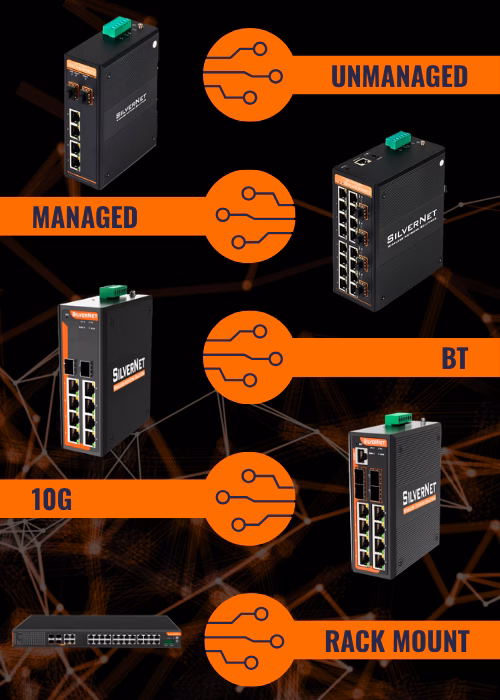

Built for the Harshest Environments & Most Challenging Conditions

The ever-expanding Series 7 range delivers an incredibly rugged and resilient networking solution deployed in even the most challenging conditions.

• Extended Temperature Range: Rated to operate between -40°C and +75°C, ensuring continuous performance in unconditioned outdoor cabinets and central rack enclosures.
• Variable Input Voltage (9-56VDC): Select models, such as the SIL 73208MP-12V, offer a full 9VDC to 56VDC input range while maintaining IEEE 802.3af/at PoE+ on all 8 ports across the whole voltage range.
• High-Density Rack Core Options: 1U 19-inch rack-mount models provide high port densities, flexible SFP/SFP+ uplink combos, and optional Layer 3 routing for centralized core network aggregation.
• Fibre Daisy Chaining: Ideal for extending Ethernet over long distances via fibre optics, negating the need for separate local power supplies for IP video cameras and wireless access points.
• Passive Fanless & Efficient Cooling: Designed for maximum thermal efficiency, ensuring proficient heat dissipation, reliable operation, and long service life.
• High-Power BT Capability: Delivering up to 90W per port (PoE++) to easily handle power-hungry edge devices.

Industrial-Grade Engineering and Comprehensive Standards

SilverNet Series 7 Industrial Switches combine high-grade hardware components with advanced networking standards to ensure maximum uptime and operational resilience. Engineered to eliminate single points of failure, this range delivers robust physical protection, comprehensive electrical safeguards, and seamless network integration.

• Rugged IP40 Enclosures & Rack Enclosures: High-strength aluminium alloy enclosures and robust 1U 19-inch rack chassis deliver physical protection against solid ingress and harsh conditions.
• Dual Redundant Power Inputs: Accepts dual power inputs (DC terminal or redundant AC/DC rack power) to eliminate single points of failure and prevent network downtime.
• Comprehensive Electrical Protection: Equipped with resettable fuses, overcurrent, reverse polarity, and ESD protection to safeguard delicate internal components against static and power surges.
• Full Open Standards Compliance: Supports complete IEEE 802.3, u, z, ab, x, az, ah, 802.1X, and 802.1Q standards to guarantee seamless network interoperability.
• Rapid Ring Recovery Protocols: Implements G.8032 ERPS, STP, RSTP, and MSTP to ensure high availability and rapid self-healing across critical network topologies.

Streamlined Management & Real-World Deployments

From long-distance surveillance setups to high-density rack infrastructure, Series 7 switches seamlessly adapt to critical real-world deployments. Paired with intuitive monitoring software and planning utilities, managing and scaling your network topology is completely effortless.

• Long-Distance Ethernet Extension: Daisy-chaining switches over fibre eliminates individual power supplies for IP video cameras and wireless access points across vast sites.
• High-Density Infrastructure: Rack-mountable top-of-rack switches provide sleek, space-saving interconnectivity for Enterprise, Intelligent Transportation Systems (ITS), and Utility markets.

Centralised Management with SilverView

Managing and monitoring your industrial network has never been simpler. SilverView, SilverNet’s dedicated Network Management System (NMS), allows you to monitor your Power-over-Ethernet switches alongside SilverNet wireless radio links from a single, unified interface.

Easily plan your surveillance deployment with SilverNet’s online CCTV Calculator Tool. Calculate required bandwidth, storage needs, and network capacity in seconds to ensure optimal switch selection and system performance.

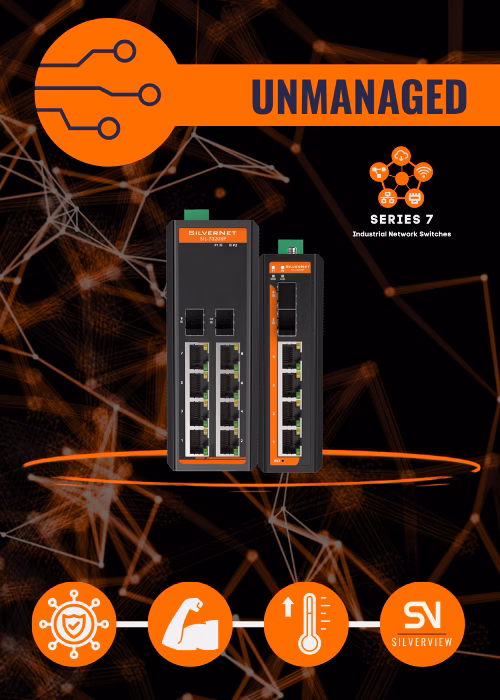

Install, Power Up, and Perform. Our Unmanaged Range is Instantly Powerful.

Series 7 Unmanaged Industrial Switches are robust, high-performance, and cost-effective. With no configuration required, these switches operate instantly upon power-up. Auto-sensing PoE ports ensure that appropriate power output is consistently and reliably supplied to connected devices.

• SIL 73101P: 1 Port PoE+ with 1 SFP Slot
• SIL 73204P: 4 Port 10/100/1000Mbps RJ45 PoE+ (30W) with 2 x 100/1000Mbps SFP Slots
• SIL 73208P: 8 Port 10/100/1000Mbps RJ45 PoE+ (30W) with 2 x 100/1000Mbps SFP Slots
• SIL 73204P-BT: 4 Port 10/100/1000Mbps RJ45 PoE++ (90W) with 2 x 100/1000Mbps SFP Slots
• SIL 73208P-BT: 8 Port 10/100/1000Mbps RJ45 PoE++ (90W) with 2 x 10/1000Mbps SFP Slots

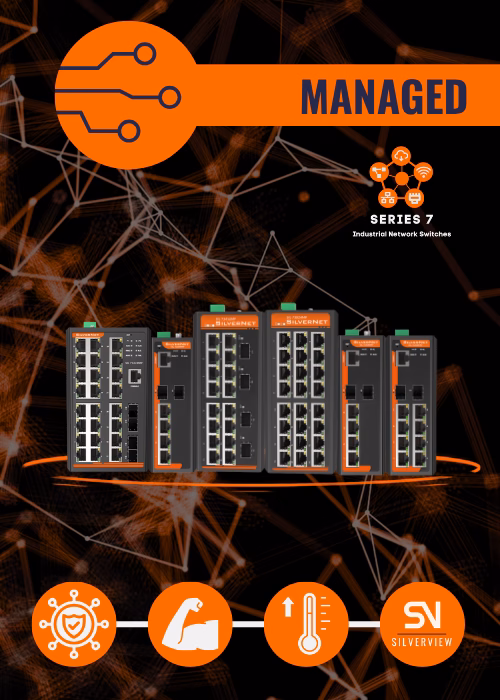

Dependable Managed Solutions Offering Complete Control.

Series 7 Managed Network Switches offer complete control, advanced Layer 2/3 management, and robust security features (IEEE 802.1X, RADIUS, HTTPS, SSH). Designed for harsh industrial environments, unconditioned cabinets, and high-density installations.

• SIL 73204MP: 4 Port PoE+ with 2 x SFP Slots
• SIL 73208MP: 8 Port PoE+ with 2 x SFP Slots
• SIL 73208MP-12V: 8 Port PoE+ with 2 x SFP Slots, featuring 9VDC–56VDC variable input
• SIL 73416MP: 16 Port PoE+ with 4 x SFP Slots
• SIL 731216MP: 16 Port PoE+ with 12 x SFP Slots
• SIL 73024MP: 24 Port Gigabit Switch (16 Ports PoE+)
• SIL 73424MP: 24 Port PoE+ with 4 x SFP Slots (DIN/Wall Mount)
• SIL 716E8C4M / SIL 716S8C4M (Rack Mount): 28 Port 1U Top-of-Rack Layer 3 Managed Switches (16 x RJ45/SFP, 8 x Combo, 4 x 10G SFP+)
• SIL 734C24MP (Rack Mount): 28 Port 1U Managed PoE+ Switch (24 x RJ45, 4 x Gigabit Combo)

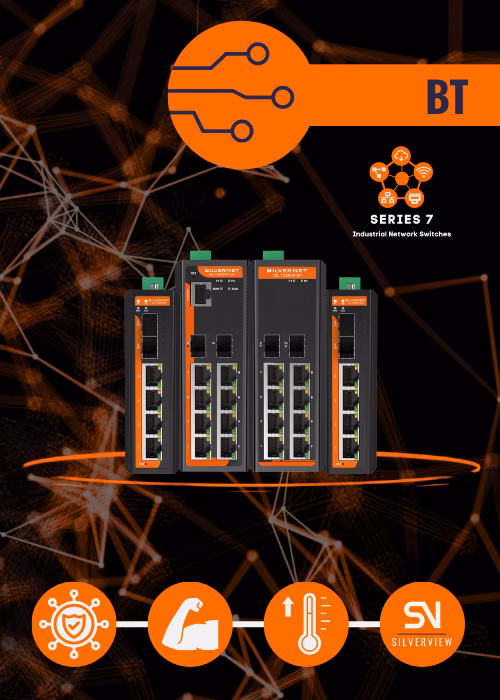

Huge Output Power for High-Power Edge Devices. BT Switches for High Power Installs.

Series 7 BT Industrial Switches deliver up to 90W of power per port (IEEE 802.3bt), making them ideal for power-hungry devices such as high-power PTZ CCTV cameras, building intercoms, and wireless access points. Featuring intelligent auto-sensing technology (supplying 15.4W, 30W, 60W, or 90W), built-in surge protection, and IP40 enclosures.

• SIL 73204MP-BT: 4 Port 10/100/1000Base-T PoE++ (90W) Managed Switch with 2 x 1000Base-FX SFP Slots
• SIL 73208MP-BT: 8 Port 10/100/1000Base-T PoE++ (90W) Managed Switch with 2 x 1000Base-FX SFP Slots

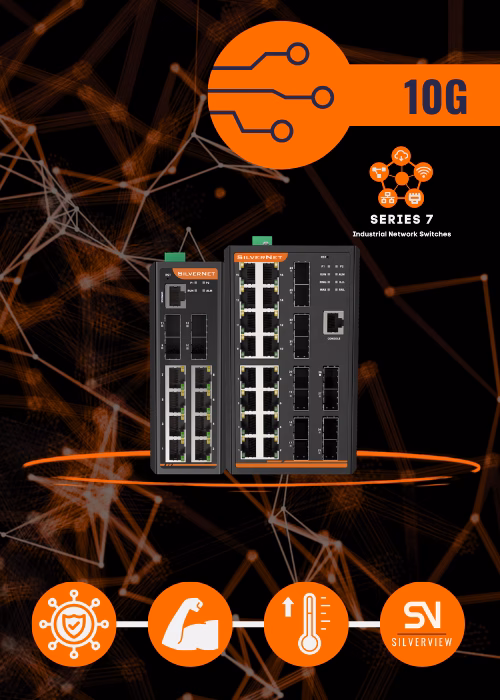

High-Speed Efficiency in Mission-Critical Applications from our 10G Switches.

Designed for long-lasting durability and high bandwidth demands, Series 7 10G Network Switches deliver 10Gbps SFP+ uplinks for rapid data transmission. Operating efficiently in extreme weather conditions and unconditioned outdoor cabinets, these managed switches provide uninterrupted operation with low power consumption.

• SIL 73408MP-10G: 8 Port PoE+ (10/100/1000Base-T) Managed Switch with 4 x 10G SFP+ Uplink Slots (128Gbps Bandwidth)
• SIL 73816MP-10G: 16 Port PoE+ (10/100/1000Base-T) Managed Switch with 8 x 1000Base-FX SFP Slots and 4 x 10G SFP+ Uplink Slots (56Gbps Bandwidth)

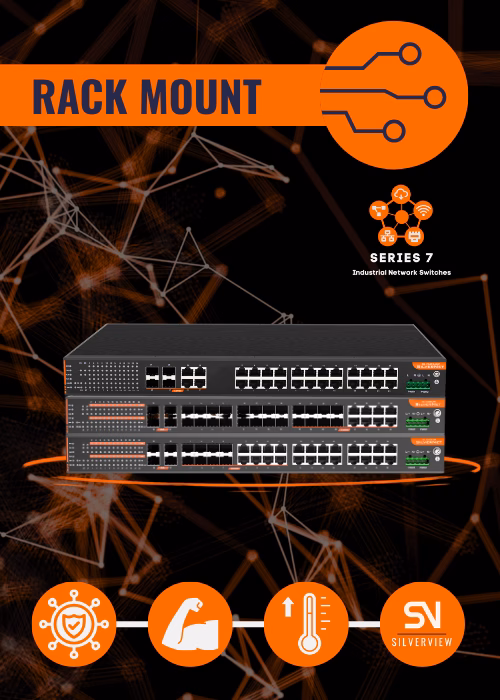

High-Density Core Power for Centralised Networks.

Series 7 Industrial Rack Mount Switches deliver high port density, powerful processing, and robust 1U 19-inch rack integration. Engineered for central control rooms, server racks, and harsh environments, these Layer 2+ and Layer 3 managed switches provide maximum network backbone resilience and rapid data transmission. The range iIncludes up to 10G SFP+ uplink ports for seamless long-distance optical connectivity and high data throughput.

• SIL 716E8C4M: 28 Port 1U Layer 3 Managed Industrial Switch (16 x 100/1000M SFP, 8 x Gigabit Combo RJ45/SFP, 4 x 10G SFP+ Uplinks)
• SIL 716S8C4M: 28 Port 1U Layer 3 Managed Industrial Switch (16 x 10/100/1000M RJ45, 8 x Gigabit Combo RJ45/SFP, 4 x 10G SFP+ Uplinks)
• SIL 734C24MP: 28 Port 1U Managed Industrial PoE+ Switch (24 x Gigabit RJ45 PoE+, 4 x Gigabit Combo Ports)
